Chapter 3: Group IIIA and Group IVA Elements – Chemistry 2nd Year Notes

This chapter covers Group IIIA and Group IVA Elements from the 2nd Year (FSc Part-II) Chemistry syllabus of the Punjab Curriculum and Textbook Board (PTB/PCTB). Group IIIA is the boron family (B, Al, Ga, In, Tl) with the outer configuration ns2 np1, and Group IVA is the carbon family (C, Si, Ge, Sn, Pb) with ns2 np2. Both groups change from non-metal at the top to metal at the bottom and show more than one oxidation state.

A recurring idea in this chapter is the inert pair effect, which explains why the heavier members (thallium and lead) prefer a lower oxidation state. We also study catenation and the allotropy of carbon (diamond and graphite), the amphoteric nature of aluminium, and important compounds such as borax, boric acid, the oxides of carbon, silica and silicones.

Learning Objectives

• List the members and configurations of Groups IIIA and IVA.
• Explain how metallic character changes down each group.
• Define and apply the inert pair effect to predict stable oxidation states.
• Explain the anomalous behaviour of boron and carbon.
• Explain catenation and the allotropy of carbon (diamond and graphite).
• Describe the amphoteric nature and uses of aluminium.
• Explain why silicon and germanium are used as semiconductors.

Key Concepts

The Two Families

In Group IIIA, boron is a metalloid while aluminium and the rest are metals. In Group IVA, carbon is a non-metal, silicon and germanium are metalloids (semiconductors), and tin and lead are metals. In both groups metallic character increases down the group while the acidic strength of the oxides decreases.

Oxidation States and the Inert Pair Effect

Group IIIA elements show a +3 state and Group IVA a +4 state. Going down each group the lower oxidation state (+1 for IIIA, +2 for IVA) becomes more stable because the outer ns2 pair of electrons becomes reluctant to take part in bonding; this is the inert pair effect. That is why thallium is most stable as Tl+ and lead as Pb2+, while aluminium is stable as Al3+.

Anomalous Behaviour of Boron and Carbon

Because it is very small with a high ionization energy, boron is a non-metal that forms only covalent, electron-deficient compounds (BF3 acts as a Lewis acid). Carbon is unique in its ability to form strong C-C bonds with itself (catenation) and to form multiple bonds, which is the basis of all organic chemistry, and it also shows allotropy.

Catenation and Allotropy of Carbon

Catenation is the self-linking of atoms of the same element into chains and rings; carbon shows it to the greatest extent. Carbon also exists as different allotropes. In diamond every carbon is sp3 hybridised and bonded to four others in a rigid three-dimensional network, so it is the hardest natural substance and a non-conductor. In graphite each carbon is sp2 and bonded to three others in flat layers with one delocalised electron per atom, so it is soft, slippery and a good conductor.

Aluminium, the Amphoteric Metal

Aluminium is amphoteric: it reacts with acids to give a salt and hydrogen (2Al + 6HCl gives 2AlCl3 + 3H2) and with alkalis to give an aluminate and hydrogen (2Al + 2NaOH + 2H2O gives 2NaAlO2 + 3H2). In the thermite reaction (2Al + Fe2O3 gives Al2O3 + 2Fe) it releases great heat, used to weld rails. Aluminium is light, corrosion-resistant and used in cables, aircraft, utensils and foil.

Important Compounds and Semiconductors

Borax (Na2B4O7.10H2O) is used in glass and as a flux; boric acid (H3BO3) is a mild antiseptic. Carbon monoxide (CO) is a poisonous reducing gas; carbon dioxide (CO2) is an acidic greenhouse gas. Silicon dioxide (silica) makes glass, and silicones are useful water-repellent polymers. Silicon and germanium are metalloids whose conductivity lies between metals and non-metals and can be controlled by doping, making them the basic materials of transistors, diodes and computer chips.

Important Definitions

Formulas & Rules

Item	Fact
Group IIIA / IVA	ns2 np1 (state +3) / ns2 np2 (state +4)
Inert pair effect	lower state stable at bottom (Tl+, Pb2+)
Diamond / Graphite	sp3 hard insulator / sp2 soft conductor
Borax / Boric acid	Na2B4O7.10H2O / H3BO3
Thermite	2Al + Fe2O3 gives Al2O3 + 2Fe

Diagrams & Illustrations

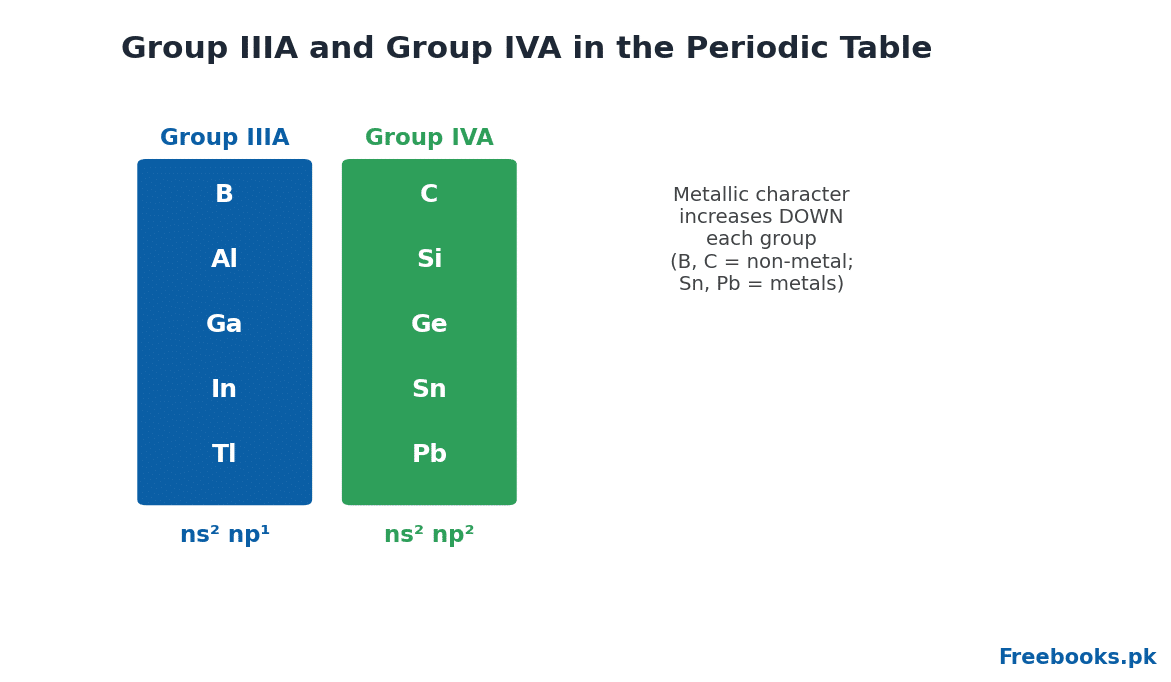

Position of Groups IIIA and IVA: a periodic-table schematic showing the boron family (ns2 np1) and the carbon family (ns2 np2), with a note that metallic character increases down each group.

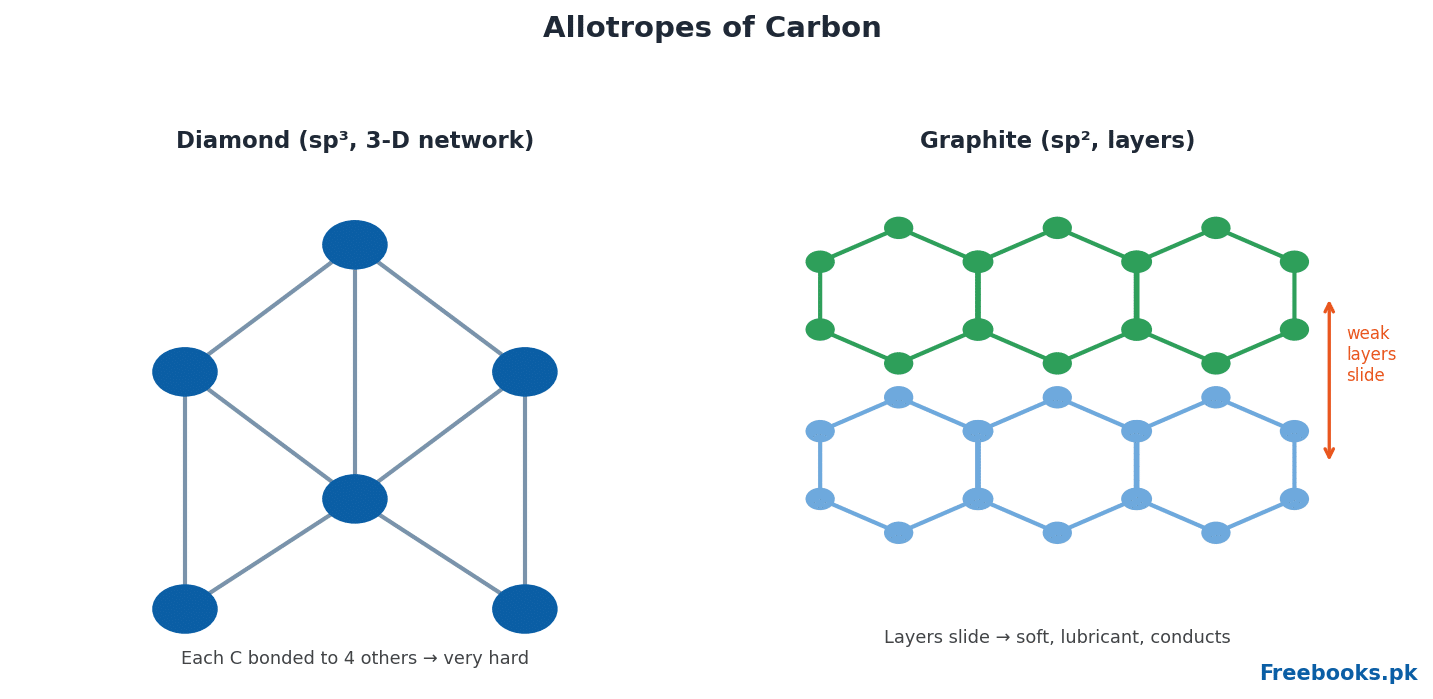

Allotropes of carbon: side-by-side structures of diamond (a rigid three-dimensional network of sp3 carbons, very hard, insulator) and graphite (flat sp2 layers that slide over each other, soft, conductor).

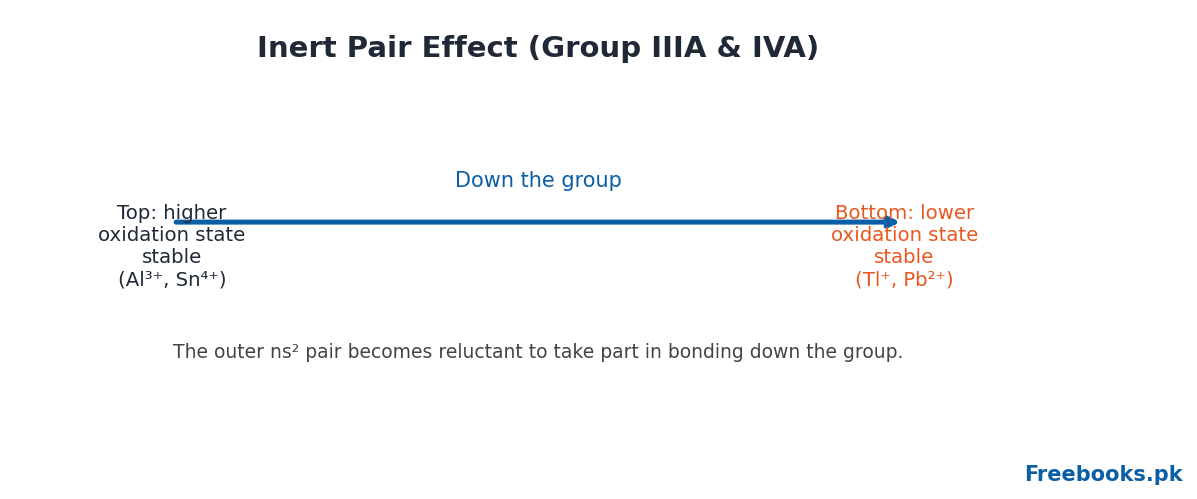

Inert pair effect: an arrow diagram showing that down the group the higher oxidation state (Al3+, Sn4+) gives way to the more stable lower state (Tl+, Pb2+).

Solved Examples & Numericals

Example 1: Predicting oxidation state

Which oxidation state is more stable for lead, +2 or +4? +2, because lead is at the bottom of Group IVA where the inert pair effect makes the outer 6s2 electrons reluctant to bond, so Pb2+ is favoured.

Example 2: Amphoteric behaviour

Show that aluminium is amphoteric. It reacts with acid (2Al + 6HCl gives 2AlCl3 + 3H2) and with base (2Al + 2NaOH + 2H2O gives 2NaAlO2 + 3H2), so it is amphoteric.

Example 3: Why graphite conducts

Why does graphite conduct electricity but diamond does not? In graphite each carbon is sp2 and one electron per atom is delocalised, so it carries current; in diamond every electron is used in sp3 bonds, leaving none free.

Short Questions & Answers

Long Questions & Answers

Q1: Discuss the general trends in Groups IIIA and IVA.

Both groups belong to the p-block, with outer configurations ns2 np1 (IIIA) and ns2 np2 (IVA). Down each group the atomic size increases and ionization energy decreases, so metallic character rises: the top elements (B, C) are non-metals or metalloids, the middle members are metalloids, and the lower members (Sn, Pb, Tl) are true metals. The common higher oxidation state (+3 for IIIA, +4 for IVA) becomes less stable down the group because of the inert pair effect, which favours the lower state for the heaviest members such as Tl+ and Pb2+. The acidic nature of the oxides decreases and their basic nature increases down each group, in line with the growing metallic character.

Q2: Compare diamond and graphite in structure and properties.

Diamond and graphite are both allotropes of carbon but differ completely in structure. In diamond every carbon atom is sp3 hybridised and bonded to four others in a rigid three-dimensional tetrahedral network; there are no free electrons, so diamond is the hardest natural substance, has a very high melting point and does not conduct electricity. In graphite each carbon is sp2 hybridised and bonded to three others in flat hexagonal layers, with the fourth electron delocalised between the layers; the layers are held by weak forces and slide easily, so graphite is soft and slippery (a lubricant and pencil lead) and conducts electricity. Thus a single element gives two materials with opposite uses.

Q3: Describe the amphoteric nature and uses of aluminium.

Aluminium is amphoteric because it reacts with both acids and alkalis. With dilute acids it gives a salt and hydrogen (2Al + 6HCl gives 2AlCl3 + 3H2), and with hot concentrated alkalis it dissolves to form an aluminate and hydrogen (2Al + 2NaOH + 2H2O gives 2NaAlO2 + 3H2); its oxide is likewise amphoteric. In practice aluminium is light yet strong, resists corrosion because of a protective oxide film, and conducts electricity well, so it is used in overhead cables, aircraft and car bodies, cooking utensils and packaging foil, and in the thermite reaction to weld railway tracks.

MCQs with Answers

Quick Revision Summary

• IIIA (B,Al,Ga,In,Tl) = ns2 np1, state +3; IVA (C,Si,Ge,Sn,Pb) = ns2 np2, state +4.
• Metallic character increases down each group; top members are non-metals or metalloids.
• Inert pair effect makes the lower state stable at the bottom (Tl+, Pb2+).
• Carbon: catenation plus allotropy (diamond sp3 hard insulator; graphite sp2 soft conductor).
• Aluminium is amphoteric; thermite = 2Al + Fe2O3 gives Al2O3 + 2Fe.
• Silicon and germanium are semiconductors used in electronics.

Exam Tips

• The inert pair effect is a favourite topic; always link it to the lower oxidation state being stable at the bottom.
• For diamond versus graphite, structure explains every property; mention hybridisation and free electrons.
• Remember amphoteric examples: Al, Al2O3, Be, Zn, Pb.
• Learn the three aluminium reactions (acid, alkali, thermite) with balanced equations.
• Do not confuse borax (Na2B4O7.10H2O) with boric acid (H3BO3).
